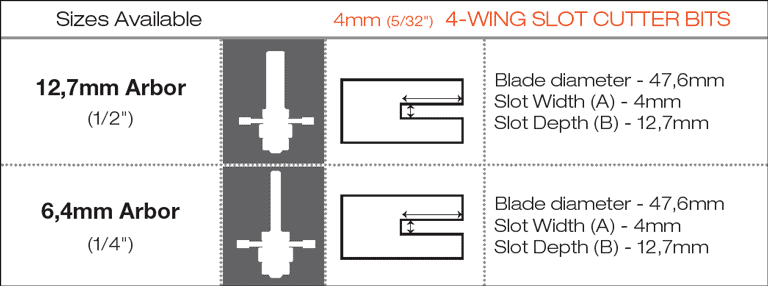

Edge Groove Router Bits

4

Step 4: Fit Fixing in Deck Board Slot

The DeckWise^® invisible terrace fixing should slide into the slot above the joist with the legs flush against the side of the deck board. Make sure the top of the clip is level in the slot above the joist.

1

Step 1: Install Router Motor in Table

Set up router table according to manufacturer’s instructions. Tighten the DeckWise^® Slot Cutter bit into the router and mount the router in the base. Adjust the height of the bit to fit the groove profile shown on the previous page.

(Visit deckwise.com/deck-groove-profile for more details on the groove profile.)

2

Step 2: Align Deck Board

Attach the fence guide to the router table to keep deck board straight. Clamp featherboards to the table and the fence to keep the decking snug against the fence and to help resist kickback.

3

Step 3: Groove Deck Board

Turn on router. Hold deck board firmly against the fence and push past the bit moving from right to left. Use push sticks or pads to keep your hands away from the bit. Turn off the router when entire board is grooved.

Tip: To avoid burn marks from the router bit, feed the board at a steady rate without stopping. The rate of feed depends on the bit and type of hardwood.

4

Step 4: Fit Fixing in Deck Board Groove

The DeckWise^® invisible terrace fixing should slide into the groove with the legs flush against the deck board. Make sure the top of the clip is level in the groove.
